(VMC)Vertical Machining Center
Vertical Machining Center (VMC) is a common CNC machine tool with a spindle axis perpendicular to the worktable. It is widely used in various precision machining tasks, especially in situations where high precision and high efficiency are required.
1 .Main features
Vertical spindle arrangement: The spindle is perpendicular to the worktable, suitable for milling, drilling, tapping and other machining operations.
High precision: Advanced CNC system and precision guide rails are used to ensure machining accuracy.
High efficiency: High degree of automation, capable of continuous multi-process machining, improving production efficiency.
Versatility: It can perform a variety of machining operations and is suitable for the machining of complex parts.
Easy to operate and maintain: Compact structure, friendly operation interface, easy maintenance.
2. Main structure
Bed: Supports the entire equipment to ensure stability and rigidity.
Worktable: Used to fix the workpiece, usually can move along the X-axis and Y-axis.
Spindle box: Install the spindle, drive the tool for machining, usually can move along the Z-axis.
CNC system: Controls machining parameters and automated operations to ensure machining accuracy.
3. Advantages
High precision: Advanced CNC system and precision guide rails ensure machining accuracy.
High efficiency: High degree of automation, capable of continuous multi-process machining.
Versatility: Can perform a variety of machining operations, suitable for machining of complex parts.
Easy to operate and maintain: Compact structure, friendly operation interface, easy maintenance.
4. Application
Mold manufacturing: Used for machining various molds.
Aerospace: Used for machining aerospace parts.
Automobile manufacturing: Used for machining engine, gearbox and other parts.
Electronic equipment: Used for machining electronic equipment housing and internal structure.
Vertical machining center is widely used in mold manufacturing, aerospace, automobile manufacturing and electronic equipment through its high precision, high efficiency and multifunctional characteristics.
| X-axis travel | mm | 1180 |
| Y-axis travel | mm | 1250 |
| Z-axis travel | mm | 800 |
| Maximum workpiece travel | mm | 1400 |
| Tilting table (milling and turning possible) | | Torque motor drive |
| Table | mm | 1000 |
| Center to spindle nose distance | mm | 280-1080 |
| Table load | kg | 2500 |
| Rotation speed A/C | | 30/50 |
| Minimum tilting table dimension | deg | 0.001 |
| C-axis rotation angle | deg | 360° |
| A-axis rotation angle | deg | +120° |
| Table T-slot width | mm | 0 |
| Maximum C-axis workpiece weight | | 1200 |
| Turning rpm | | 500 |
| Spindle speed | rpm | 8000 |
| Spindle type | type | HSK A100 |
| Spindle horsepower (S6-40%) | kw | 26 |
| Spindle torque (56-.40%) | Nm | 260 |

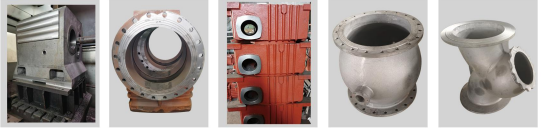

Processed Products
