VMC Vertical Reaming Drilling Tapping Milling Turning Machine
The automatic tool change vertical drilling and tapping machine is a CNC machine tool specially used for processing valve bonnet parts. It integrates drilling and tapping functions and is equipped with an automatic tool change system (ATC). This machine tool adopts a vertical structure, has the characteristics of high precision, high efficiency and high automation, and is widely used in valve manufacturing, pipeline engineering, petrochemical and other industries.
Customized
Processing range: Select the appropriate workbench and stroke according to the size of the valve bonnet.
Accuracy requirements: Select the appropriate accuracy level according to the needs.
Tool magazine capacity: Select the tool magazine capacity according to the processing process.
Spindle power: Select the appropriate spindle power according to the processing material.
Automation configuration: Select automatic tool change, feeding and detection system according to production needs.
After-sales service: Select a supplier with perfect technical support and reliable after-sales service.
Advantages
High efficiency: The automatic tool change system reduces tool change time and improves production efficiency.
High precision: Ensure the accuracy of drilling and tapping to meet high sealing requirements.
Save manpower: High degree of automation and reduce manual operation.
Strong adaptability: can process valve bonnet parts of different specifications and complexity.
Reduce costs: reduce equipment investment and processing time, and reduce production costs.
Application
Valve manufacturing:
Processing valve bonnets, valve bodies, valve covers and other parts.
Complete drilling and tapping processes to ensure the sealing and connection strength of valves.
Pipeline engineering:
Processing pipeline connectors and flanges.
Petrochemical:
Processing valve parts in oil and natural gas pipelines.
General machinery manufacturing:
Processing various parts that require drilling and tapping.
Maintenance
Regular lubrication: Ensure that all moving parts are well lubricated to reduce wear.
Cleaning and maintenance: Clean chips and coolant in time to keep the machine clean.
Check accuracy: Regularly check and adjust machine tool accuracy to ensure processing quality.
Replace wearing parts: Replace worn tools and guide sleeves in time.
Coolant management: Check the coolant regularly to ensure its cleanliness and effectiveness.
| Project | Machine tool specifications | YCZG-SKZG40 |
| Technical specifications | Z-axis travel(mm) | 700 |
| X-axis travel(mm) | 500 |
| Y-axis travel(mm) | 500 |
| Tool connection method | BT40 |
| Processing accuracy | Position accuracy | ≤0.015/3000 |
| Surface roughness | 3.2 |
| Spindle drive | Transmission mode | Stepless speed change |
| | Spindle speed range (r/min) | 0-1000 |
| | Spindle motor model | 5.5KW servo |
| CNC control system (optional) | Nanjing Huaxing-servo system Guangzhou CNC-servo system |
| Feeding mode | Servo motor | 7.7N.m |
| Machine tool appearance | Fullprotection (Length×width ×height)( mm) | 2760×2200×2430 |
| Machine weight (KG) | 3000 |

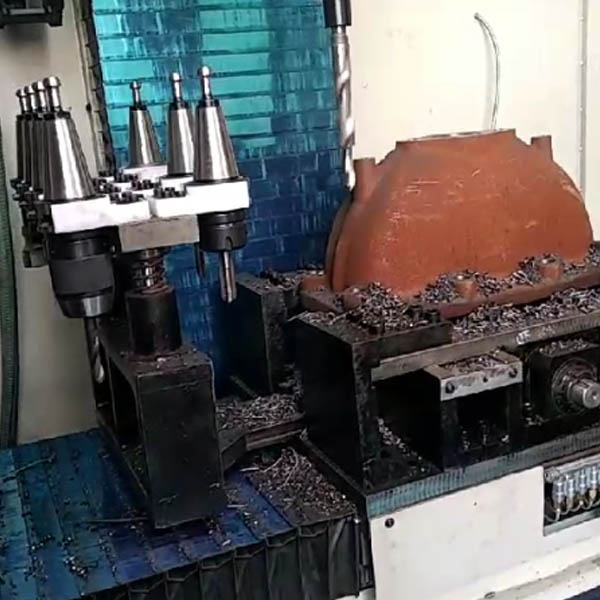

Processed Products
Machine picture
